AJA BRIDGE NDI® 3G
High Density HD and 4K/UltraHD Conversion Gateway
for SDI to NDI and NDI to SDI
BRIDGE NDI 3G is a 1RU turnkey gateway offering high density conversion to and from 3G-SDI to NDI and NDI to 3G-SDI for both HD and 4K/UltraHD. Designed to drop into any existing NDI or SDI workflow as a plug and play appliance, it is easy to deploy and administer.
BRIDGE NDI 3G brings immense conversion power and flexibility, fully controllable remotely for AV use, security and surveillance, broadcast, eSports, entertainment venues and a wide range of other facilities needing high quality, efficient NDI encode and decode.
BRIDGE NDI® 3G Features
3G-SDI I/O supports 16-channels of SD/HD or 4-channels of 4K/UltraHD up to 60p as standard*
Bidirectional encode/decode SDI to NDI, NDI to SDI, with a combination of HD or 4K/UltraHD video
Confidence monitoring
Supports both NDI 5 and NDI 4
Discovery Server Compatible
Selectable NDI encode profiles for 8-bit and 16-bit, 4:2:2
Buffer controls for low latency tuning
Video and Key support
Progressive and Interlaced video support
16-channel audio support
Timecode support across VITC1, VITC2, LTC, and Time-of-Day
Remote WebUI or local GUI for easy administration, control, and operation
Turnkey 1RU rackmountable, enterprise-class form factor
Dual 10GigE interface for media and control
Dual power supplies for critical application redundancy
Three year warranty

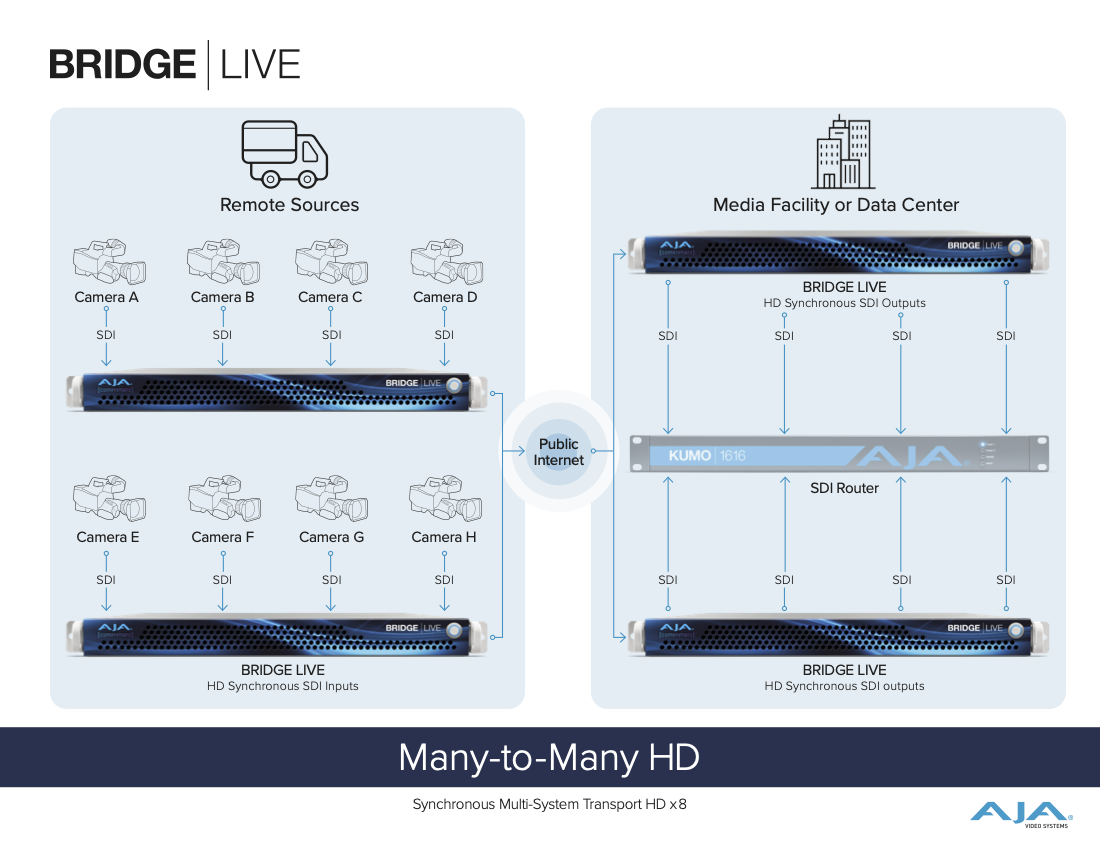

AJA BRIDGE LIVE
Multi-Channel Live Video for Remote Production (REMI), Contribution, Collaboration, Streaming and Delivery
BRIDGE LIVE is a broadcast quality, low latency turnkey system for REMI, Synchronous Multi-Channel Video Contribution, Remote Collaboration, Direct to Audience Streaming, and Multi Bit Rate/Format Delivery.
Equipped with 12G-SDI I/O plus the power and flexibility to enable real time bidirectional encoding, decoding, and transcoding for critical UltraHD and HD workflows, BRIDGE LIVE is an essential part of any modern live video production toolkit. A compact and robust 1RU form factor with redundant power supplies and a 3 year warranty means peace of mind even when dealing with the most demanding applications.
Whether facilitating remote production, two-way interviews, live event streaming, synchronous multi-cam backhaul with HDR, cloud contribution, program return, confidence monitoring, collaborative production, ABR ladder profiles to hand-off for OTT packaging, BRIDGE LIVE ensures simultaneous, secure, and stable workflows whether over private lines or the public internet.
BRIDGE LIVE Features
12G-SDI/3G-SDI I/O supports Multi-Channel HD or UltraHD as standard
Bidirectional Encode/Decode/Transcode; NDI, H.265 (HEVC), H.264 (AVC, MPEG-4), H.262 (MPEG-2) and JPEG 2000* (TR-01)
Synchronous Multi-Channel / Multi-System Transport for SDI backhaul or Cloud Delivery
Protocols; SRT, UDP, HLS, RTP, RTMP/S (output), MPTS (input)
Transports; MPEG-TS, NDI, AVC-TS, Fragmented MP4
Multi bit rate/format distribution, ABR Ladder Profiles for OTT hand-off.
Selectable profiles for 10-bit and 8-bit, 4:2:2 and 4:2:0
Unmatched Metadata capabilities including MPEG-2 ANC, SMPTE 2038, Ad insertion markers (SCTE-35/SCTE-104), CC/Subtitles (EIA-608/708, Line 21, H.264 SEI)
HDR/SDR from SDI source to SDI destination in BRIDGE LIVE end-to-end configurations
Remote WebUI or local GUI for easy administration, control, and operation.
Monitoring, Control, and Automation supported via REST API or SNMP
Turnkey 1RU rack-mountable, enterprise-class form factor
Dual 10GbE interface for control and transport
Dual power supplies for critical application redundancy
Three year warranty
*Full NDI, H.265, H.264, H.262, HLS I/O functionality included with BRIDGE LIVE turnkey system, JPEG 2000 I/O license options available

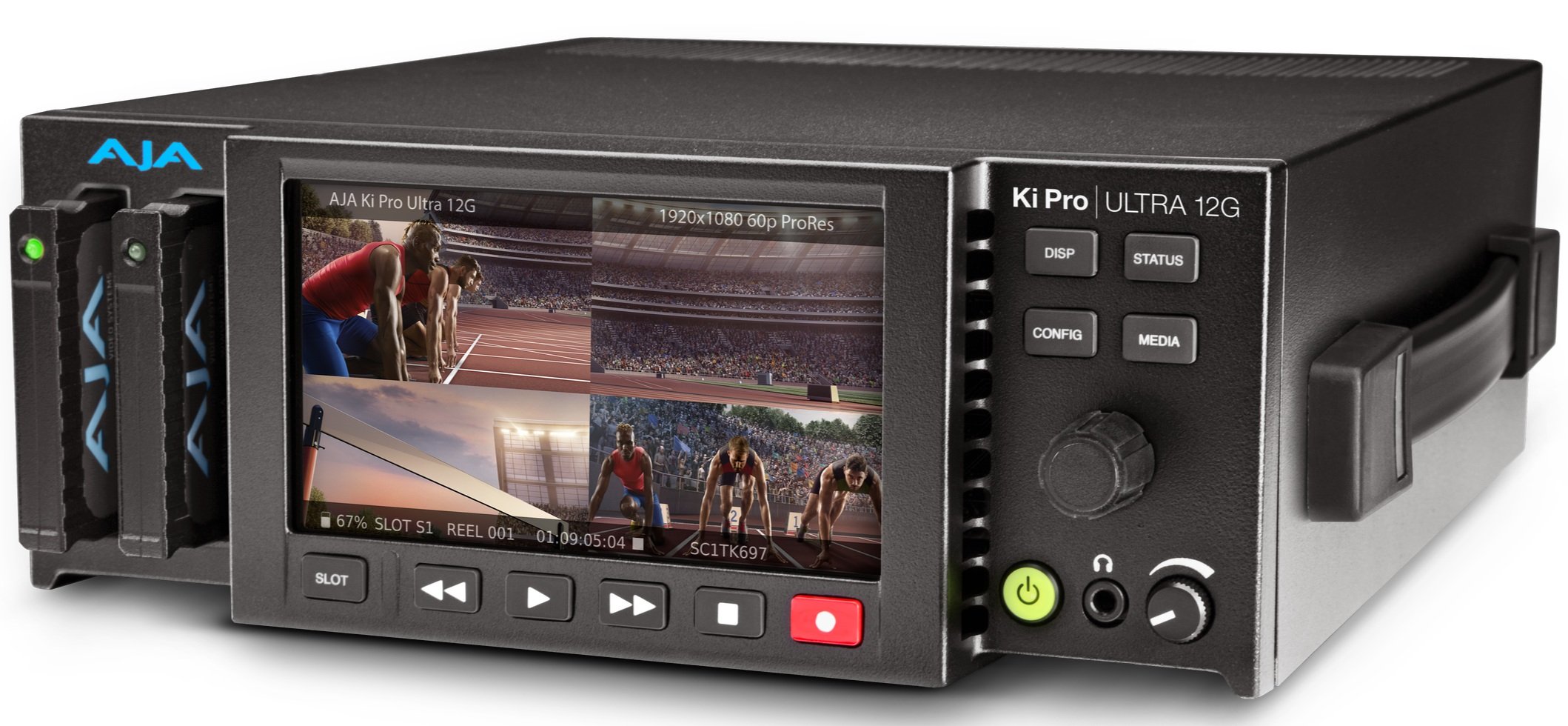

AJA Ki Pro Ultra 12G
12G-SDI 4K/UHD/HD Recorder and Player
Multi-Channel HD Recorder
Ki Pro Ultra 12G is a multi-channel Apple ProRes® recorder offering up to 4-Channels of simultaneous HD recording, or in Single-Channel mode, a 4K/UltraHD/2K/HD Apple ProRes or Avid DNxHR® recorder and player. Avid DNxHD® MXF is also supported up to HD formats in Single-Channel mode.
Ki Pro Ultra 12G offers 12G-SDI single cable simplicity for large rasters up to full 4K, (the 4x 3G-SDI inputs/outputs can be used for Quad Link operations as required) and HDMI 2.0 digital video connectivity with HDR support for both recording and playback.
A wealth of analog and digital audio connectivity answers any project’s demand for efficient, powerful and flexible workflows. For distance and remote needs, 12G and 3G Fiber SFP+ options are available. New v2.0 firmware adds the ability to record genlock free sources with frame sync support on inputs.
Designed to be either portable or rackmountable with half rack wide, 2RU high dimensions, Ki Pro Ultra 12G is well suited for use in any environment.
Ki Pro Ultra 12G Features
4K/UltraHD/2K/HD Recorder and Player
Supports single-channel 4K/UltraHD/HD recording to ProRes or DNx files
Supports multi-channel HD recording to ProRes
Records and plays back up to Apple ProRes 4444 XQ or Avid DNxHR HQX
Genlock-free multi-channel HD recording up to 1080 60p
Single channel recording up to 4K 60p
HDR recording and playback
1x 12G-SDI I/O
3x 3G-SDI I/O (4x when also using the 12G-SDI capable port)
HDMI 2.0 I/O
SFP fiber cage I/O (fiber modules not included)
2x PAK media bays with Ki Protect
Analog audio I/O (DB-25 loom connectivity)
AES/EBU digital audio I/O (DB-25 loom connectivity)
Multi-channel embedded SDI and HDMI audio
REF, LTC, RP-188 and RS-422 support
REST interface
Support for 8K VPID multi-unit playback
Front panel button controls with integrated HD resolution screen
Easy to use web UI, configure and control from standard web browsers
Compact 2RU, half-rack width design
Three year warranty
AJA Ki Pro GO
Ki Pro GO is a portable multi-channel H.264 recorder offering up to 4-channels of simultaneous HD and SD recording to off the shelf USB drives and/or network storage with redundant recording capabilities.
4x 3G-SDI and 4x HDMI digital video inputs with flexible channel assignments provides connections to the latest video sources, including cameras and DSLRs. Incoming video sources do not have to be genlocked due to Ki Pro GO's input frame syncs. Ki Pro GO also features AJA's high quality de-interlacers on each input so progressive recordings can be made from interlaced inputs. High quality 2-channel embedded audio or balanced XLR analog audio can be assigned to any recording channel. Multi-Channel Matrix Monitoring enables multiple video channels to be viewed on any single HDMI or SDI display, and Enhanced Super Out offers timecode, media status and audio meter overlays over the SDI and HDMI monitor outputs.
Designed to be either portable or rackmountable with half rack wide, 2RU high dimensions, Ki Pro GO is well suited for use in any environment.
Ki Pro GO Features
Multi-channel H.264 recording
5x USB recording media ports, compatible with off-the-shelf USB 3.2 Gen 1 media
In system exFAT drive formatting
Redundant recording to user selectable usb ports
Recording to network (SMB) storage
Redundant recording to user selectable destinations – USB or SMB
Genlock free inputs
4x 3G-SDI inputs
4x 3G-SDI outputs
1x 3G-SDI monitoring output
4x HDMI inputs
1x HDMI monitoring output
HDMI and SDI multi-channel matrix monitoring
HDMI and SDI Enhanced Super Out for monitoring: timecode, media status and audio levels
Playback files externally created in DaVinci Resolve, Avid Media Composer, Apple Final Cut Pro, and Adobe Premiere Pro
Single-channel H.264 playback
Selectable VBR recording settings with 5 options
Timecode Input Support:
Time of Day
Timecode Value
SDI RP-188
LTC
Available using 1-channel of Analog Audio In
Balanced XLR analog audio inputs, mic/line/48v switchable
2-channel embedded audio per video input
Easy-to-use web UI, compatible with standard web browsers
Network web UI based file downloads
Front panel button controls with integrated HD resolution screen
Stand-alone operation

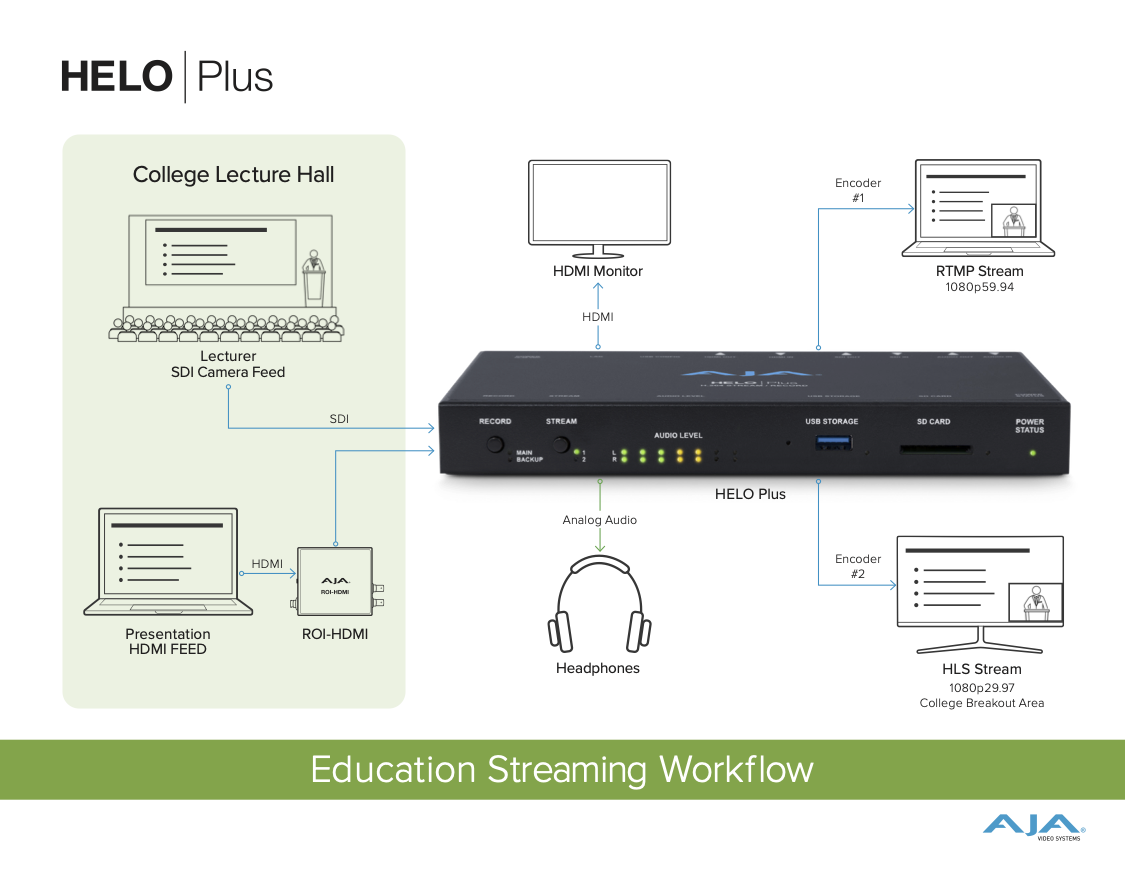

AJA HELO Plus
HELO Plus is a compact, advanced H.264 streaming and recording stand-alone appliance. HELO Plus offers both SDI and HDMI I/O with the capability to stream up to 1080p60 to a Content Delivery Network and record simultaneously. Two separate streaming destinations can be set up and recordings can be made to a combination of SD card, USB storage and NFS or CIFS network storage. HELO Plus also provides Picture-In-Picture and graphics functionality in hardware for compelling presentations made simple.
HELO Plus offers high quality streaming with ultra-reliable performance for any critical streaming service needs, including eSports, news, sports, education, creator, live events, and beyond.
AJA HELO Plus Features
Portable, stand-alone device with 3G-SDI and HDMI I/O
Encode up to 1080p60 in H.264/MPEG-4
Stream to two separate destinations simultaneously
Create Picture-in-Picture streaming/recording output from multiple input sources
2-channel stereo audio
Analog stereo audio out
Front panel LED audio meters
Data rates from 100 kbps to 20 Mbps in MPEG-4
Record to SD, SDHC, or SDXC cards, USB storage, NFS, CIFS, or SMB network volumes
USB slot and SD card slot for local external storage
Video input and output on 3G-SDI and HDMI
Support for RTP/UDP, RTSP, RTMP, RTMPS, HLS, and Unicast
SRT compatibility
AV Mute with user graphics upload support for pre-live feeds
Web-based GUI preview window
Group control for multiple HELO Plus and Ki Pro devices
Three Year Warranty
AJA KUMO ROUTERS
KUMO routers provide a convenient dense routing solution in lightweight, compact form factors for use in facilities, OB trucks, post suites and more. KUMO is available in multiple connector densities, in 3G-SDI and 12G-SDI options. KUMO is easy to update, configure, and control with optional Control Panels for quick physical access to source and destination routing, with convenient USB ports for IP configuration, plus all models offer integrated web browser access across a network over the built-in Ethernet connection.
KUMO 1616-12G, KUMO 3232-12G and KUMO 6464-12G SDI routers enable 4K and UltraHD routing on a single BNC for rates up to 12G. With a simple setting change, KUMO routers can be configured for ganged dual and quad port routing, allowing users to group together multiple inputs and outputs for dual link, quad link 4K/UltraHD, and even 8K workflows. KUMO supports routing of uncompressed or raw 8K/UltraHD2/4K/UltraHD/2K/HD/SD signals with embedded audio throughout a production or post facility, giving you the flexibility to route virtually any format.
AJA KUMO Remote Control Panels
KUMO CP2 and KUMO CP are optional control panels that can be used in standalone or networked configurations.
Connecting via Ethernet to the same network as the KUMO routers, KUMO CP and KUMO CP2 enables full control from any location without the need for a computer. Up to four KUMO routers can be controlled from a single control panel.
KUMO CP2 offers direct access to all 32 inputs and 32 outputs for the KUMO range up through the KUMO 3232-12G, and with a simple click of the shift key, addresses all 64 inputs and outputs of the KUMO 6464 models. This control panel also offers direct control of a KUMO router’s eight salvos.
KUMO 3232-12G
Compact 32x32 12G-SDI Router
KUMO 3232-12G offers increased capacity for medium sized configurations while maintaining a compact 2RU profile with support for 12G-SDI/6G-SDI/3G-SDI/1.5G-SDI from 32x 12G-SDI inputs and 32x 12G-SDI outputs. Supports ganged dual and quad port routing control, allowing users to group together multiple inputs and outputs for Dual Link, Quad Link 4K/UltraHD, and 8K/UltraHD2 workflows.
KUMO 12G-SDI routers support large format resolutions, high frame rate (HFR) and deep color formats, while reducing cable counts when transporting 4K/UltraHD over SDI. The routers offer network-based and/or physical control using KUMO CP and CP2, and mirror the physical form of AJA’s production-proven KUMO 3232 and KUMO 1616 routers, with a USB port for configuring IP addresses via AJA’s eMini-Setup software.
Built to the same quality standards as all AJA KUMO products, KUMO 3232-12G is the ideal choice for any situation where a balance of size and capacity are critical such as mid-sized post facilities and mobile trucks.
KUMO 3232-12G Features
32x 12G-SDI inputs and outputs
Small, portable form factor
Single cable support for 4K/UltraHD
Supports ganged dual and quad port routing for resolutions up to 8K/UltraHD2
Redundant power supply (option)
Eight salvos per router
Embedded web server for remote control
Configure IP Address via USB port and supplied AJA eMini-Setup software for PC/Mac
Five year warranty
Powerful Signal Management
KUMO 3232-12G’s powerful cross-point routing matrix maps any input to any number of outputs without the need for additional patch panels or distribution amplifiers. Use KUMO as an affordable distribution amplifier by routing a single input to all outputs. Used in this way, a KUMO 3232-12G can take the place of multiple distribution amplifiers.
As 8K emerges and 4K/UltraHD workflows continue to gain ground, KUMO routers can meet the rising challenge. KUMO 12G-SDI routers offer single-link cable simplicity for 4K/UltraHD and with a simple setting change, KUMO 12G-SDI routers can be configured for ganged dual link or quad link routing allowing users to group together multiple inputs and outputs for 8K workflows and similarly, KUMO 3G-SDI routers for dual or quad link 4K/UltraHD workflows. This allows routing of raw or 8K or 4K/UltraHD signals throughout a production, live event, OB truck or post facility.
KUMO 6464-12G
Compact 64x64 12G-SDI Router
KUMO 6464-12G offers increased capacity for larger configurations while maintaining a compact 4RU profile with support for 12G-SDI/6G-SDI/3G-SDI/1.5G-SDI from 64x 12G-SDI inputs and 64x 12G-SDI outputs. Supports ganged dual and quad port routing control, allowing users to group together multiple inputs and outputs for Dual Link, Quad Link 4K/UltraHD, and 8K/UltraHD2 workflows.
KUMO 12G-SDI routers support large format resolutions, high frame rate (HFR) and deep color formats while reducing cable counts when transporting 4K/UltraHD over a single SDI link. The routers offer network-based and physical control using KUMO CP and CP2 and mirror the physical form of AJA’s production-proven KUMO 6464 routers, with a USB port for configuring IP addresses via AJA’s free eMini-Setup software.
Built to the same quality standards as all AJA KUMO products, KUMO 6464-12G is the ideal choice for any situation where a balance of size, performance and capacity are critical such as post facilities and mobile trucks.
AJA KUMO 6464-12G Features
64x 12G-SDI inputs and outputs
Small, portable form factor
Single cable support for 4K/UltraHD
Supports ganged dual and quad port routing for resolutions up to 8K/UltraHD2
Redundant power supply (option)
Eight salvos per router
Embedded web server for remote control
Configure IP Address via USB port and supplied AJA eMini-Setup software for PC/Mac
Five year warranty
KUMO 1616-12G
KUMO 1616-12G offers the perfect size for combining multiple cameras, monitors, editing systems, tape decks and file based recorders into a seamless workflow with a compact 1RU profile and support for 12G-SDI/6G-SDI/3G-SDI/1.5G-SDI from 16x 12G-SDI inputs and 16x 12G-SDI outputs. Supports ganged dual and quad port routing control, allowing users to group together multiple inputs and outputs for Dual Link, Quad Link 4K/UltraHD, and 8K/UltraHD2 workflows.
KUMO 12G-SDI routers support large format resolutions, high frame rate (HFR) and deep color formats, while reducing cable counts when transporting 4K/UltraHD over SDI. The routers offer network-based and/or physical control using KUMO CP and CP2, and mirror the physical form of AJA’s production-proven KUMO 3232 and KUMO 1616 routers, with a USB port for configuring IP addresses via AJA’s eMini-Setup software.
Built to the same quality standards as all AJA KUMO products, KUMO 1616-12G is the ideal choice for any situation where a balance of size and capacity are critical such as mid-sized post facilities and mobile trucks.
KUMO 1616-12G Features
16x 12G-SDI inputs and outputs
Small, portable form factor
Single cable support for 4K/UltraHD
Supports ganged dual and quad port routing for resolutions up to 8K/UltraHD2
Redundant power supply (option)
Eight salvos per router
Embedded web server for remote control
Configure IP Address via USB port and supplied AJA eMini-Setup software for PC/Mac
Five year warranty
